고밀도 컴퓨팅 성능 | 높은 신뢰성과 보안성 | 효율적인 에너지 절약 | 지능형 O&M |
4세대 또는 5세대 인텔® 제온® 스케일러블 프로세서(프로세서당 385W TDP) 및 32 x DDR5 DIMM(CXL을 통해 48 x DIMM 슬롯으로 확장 가능)
PCIe 5.0 프로토콜 및 17개의 표준 PCIe 슬롯으로 유연한 구성 보장
히트 파이프 원격 방열 기술은 안정적인 열 방출과 더 강력한 온도 적응을 보장합니다.
고유한 AI 메모리 오류 자가 치유로 안정적인 시스템 실행 보장
팬과 CPU의 전력 소비를 최소화하기 위해 고유한 알고리즘이 제공됩니다
CPU 작업 빈도는 실제 서비스 부하에 따라 동적으로 조정됩니다
세 가지 핵심 기술은 전력과 효율성을 개선하여 업계 최고의 전력 전환율과 업계 평균보다 12.5% 낮은 전력 손실을 가능하게 합니다.
자동 버전 푸시 및 업그레이드는 현장 참석 없이 완료할 수 있습니다.
75%의 간소화된 배포 단계가 툴에 의해 수행됨
모든 공급업체의 서버 인수, 자동 자산 위치 식별 및 실시간 추적 지원

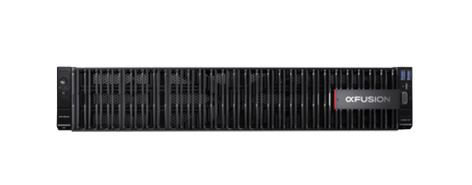

| Form Factor | 2U rack server |
|---|---|
| Processor | 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs* |
| Local Storage |
Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 20 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0 |
| GPU Card | 4 x dual-width or 14 x single-width GPU cards |
| Fan Module | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Power Supply | 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature | 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Certification | CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) |
Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
