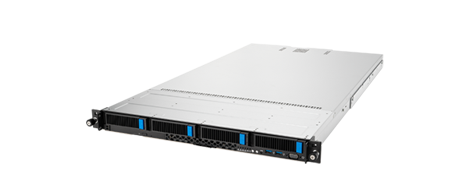

PCI Express®(PCIe®) 5.0은 PCIe 4.0의 두 배 속도인 32GT/s 대역폭을 제공하며 더 낮은 전력 소비, 더 나은 랜드 확장성 및 이전 버전과의 호환성을 제공합니다. ASUS 서버는 PCIe 5.0을 지원하며 최신 데이터 센터의 증가하는 워크로드를 충족할 수 있도록 확장성 설계를 지원합니다.
| Processor / System Bus | Intel®Xeon® Processor Scalable Family | Generation | 4th/5th |
|---|---|---|---|
| Core Logic | Intel® C741 Chipset | Memory | Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC) Memory size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS * Refer to www.asus.com/support for more information |
| Expansion Slots |
Up to 3+1 PCIe slot 1 x OCP 3.0 or PCIe G5 x16 FHFL 1 x PCIe G5 x16 FHFL 1 x PCIe G5 x8. LP (Internal) 1 x PCIe G5 x16, LP |
Storage | 4 x 3.5" hot-swap bay 4 x NVMe/SATA/SAS* (HBA//RAID card is required to support SAS hard drives) |
| Drive Bays | 4 x 3.5" hot-swap bay 2 x M.2 slot | System Fan | 9 |
| Networking | 4 x1Gbe(Intel I350-AM4) RJ45 port or 2 x 10Gbe(Intel X710-AT2) RJ45 port | Graphic | Aspeed AST2600 64MB |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports | Rear I/O Ports |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional) |
| Switch/LED | Front Switch/LED: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED) |
Dimensions | 842.5mm x 439.5mm x 44mm |
| Form Factor | 1U | Weight | 22.56kg |
| Power Supply | 1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply | CPU Heatsink/ Cooler | Standard/ EVAC Heatsink |
